- Differential Pressure / Vacuum Decay
- Mass Flow Measurement
- Blockage Testing
- Volume Testing
Range of Products
Features
Full Colour Touch Screen Graphical Display
Built-in Standard Communication Protocols:Profinet, Modbus TCP
Highly Accurate up to 0.35 Pascal
Direct-Operating Valve Cuts Test Time by up to 1 Second .
Pinch Test Detection Validates Pressure Ramp During Fill Phase.
Inbuilt Storage With USB For Easy Data Import/Export.
Detects Sand & Foreign Particles In The Test Part Using Volume Analysis.
Capable Of Detecting Blockages In Casing And Other Components, With Sensitivity Up to 1%.
Data Acquisition Software
- User-friendly Windows-based application software compatible with any operating system.
- Data is collected using the serial communication port of the controller.
- All test parameters, including set parameters and actual parameters, can be stored.
- Graphical representation of results is available.
- All data is available for processing using MS Access or Excel.
- Batch-wise, day-wise, and shift-wise report generation available for MIS purposes.
- Barcode printer and barcode scanner can be connected directly.
- Data can be simultaneously collected from multiple controllers.
- Standard configuration of the leakage testing setup using PC, printer, and scanner.
Approvals & Achievements
Got approval for blockage test in Mahindra and Mahindra and implemented multiple testers
Approval from Eurofins Lab Italy for CCIT with ASTM F2338-09 and USP 1207 in the pharma industry
Got approval from Electra EV for battery and battery pack leak testing
Godrej - Air spring / Wagon
Defense AFK/OFB/HEF (Mines and H2A Boxes)
Got approved by Indian Railways
Got approval from TACO for EV battery and battery pack leak testing

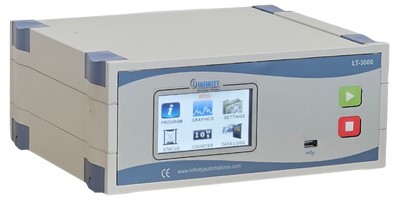

Technical Specifications
| Parameter | Description |
|---|---|
| Display | 4.3” TFT color touchscreen for controlling with your fingers |
| Test Pressure Range | Range -0.9 bar to 20 bars |
| Pressure Regulation | Electronic pressure regulation. Different test pressures can be set independently for each channel. |
| Communication | Modbus 485, Modbus TCP, Profinet |
| Sensing Technology | Differential pressure decay leak measurement. Usable in both pressure and vacuum conditions. |
| Program Selection | With digital input Modbus & Profinet |
| Programmable Outputs | 4 outputs for coupler / marker / cutter / etc. |
| Accessions | Leak master (on request at extra cost), external exhaust valve, quick couplers/connectors |
| Resolution | 0.01 Pascal |
| Differential Pressure Range | ± 6500 Pascal |
| Sensor Accuracy | Up to 0.035 Pascal |
| Test Pressure Units | PSI, kg/cm², bar, mbar, mmHg, cmHg, inHg, mmH₂O, kPa, etc |
| Leak Units | mL/min, L/min, mL/s, Pa/s, Pa/min, Pa, kPa, Pa·m³/s, E−3 Pa·m³/s, etc. |
| Leak Limit Range | ±999.9 Pascal |
| Number of Programs | 500 Programs |
| Timers | 999.9 seconds (resolving power: 0.1 second) |
| Power Source | Regulated 24VDC, 2A |
| USB Port | – Test data- Exporting test parameters – Test parameter backup / Restore – System backup / Restore – Upgrade |
| CPU | RISC 32-bit, 200 MHz |
| Weight | Approx. 8 to 10 kg (standard specifications) |
| Dimensions | 340 × 260 × 150 mm (W × D × H) |
Leak Test Couplers
Leak test couplers designed for secure, reliable, and quick connections during pressure or vacuum testing
- Available Sizes: 5 mm to 50 mm
- Gripping Options: Internal Diameter (ID) and External Diameter (OD) for broad compatibility
- Tool-Free Operation: Enables fast, leak-tight sealing without additional equipment
- Durable Construction: Ensures long service life and consistent performance
- Efficiency Boost: Reduces setup time and enhances overall testing productivity
- Versatile Applications: Suitable for both automated and manual leak testing setups
- Industry Use: Ideal for automotive, medical device, and industrial manufacturing sectors
Application Areas
Application Areas
- Ball bearing
- Bellows seal
- Brake caliper
- Brake pipes
- Catalytic exhaust pipe
- Clutch casting
- Cylinder block
- Cylinder head
- Cylinder sleeve
- Delco
- Differential gear transmission
- Engine block
- Engine rubber seals
- Exhaust manifold
- Exhaust pipe
- Fuel cap
- Fuel filter
- Fuel float
- Fuel tank
- Fuel tank cap
- Gas tank
- Gear box
- Gear box manifold
- Head light
- Head light ramp
- Heat exchanger
- Heater core
- High pressure fuel circuit
- Horn
- Hydraulic transmission
- Injection ramp
- Inlet manifold
- Inlet valve
- Inlet valve guide seal
- Jerry can
- Lip seal
- Mechanical transmission
- Oil manifold
- Oil gauge
- Oil heater
